Specifications:

Machine Model: 31DU-X45

Machine Printhead: Epson XP600, DX7

Transmission mode: Screw (high precision)

Number of printheads: 1-2 (optional)

Drying system: UV-LED lamp

Print thickness: 200mm

Printing platform: Tempered glass

Printing accuracy: 1440,2160,2880dpi

Printing Colour: CMYKWV(blue, red, yellow, black and white varnish)

RIP Software: montel+autonomous colour software

Overall Dimension: L920*W940*H570mm

Printing range: W450*L750mm

Special customisation: plt interface (automation interface), suction platform, print thickness 400mm (optional)

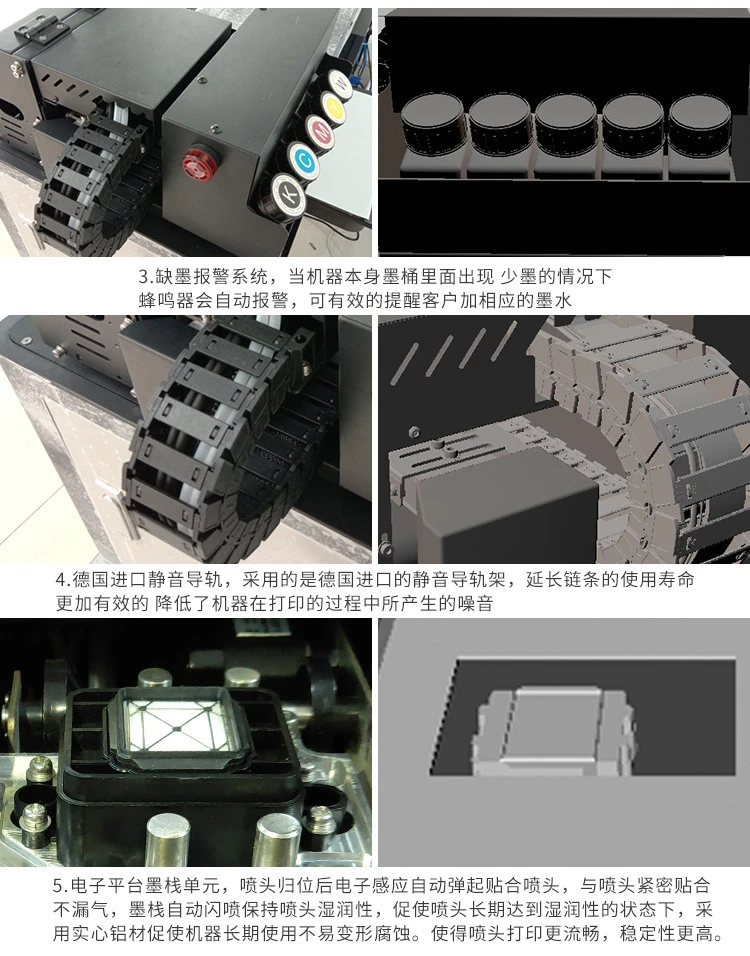

Ink Stack Unit: Aluminium Alloy (Reduce the chance of printhead clogging)

Printing software: 31 degrees customised software

Image format: TIFF JPEG, EPS, PDF.

Ink characteristics: UV-cured ink or textile ink optional

Operating system: Window7 32/64bit RAM ≥ 8G

Ink supply system: 500ML drum, automatic ink level monitoring, non-stop ink refilling

Relative humidity: 40%-70% can effectively control static electricity, to ensure print quality

Power supply: Maximum power 2.4KW; AC, 50HZ/60HZ;220V(+10%)>10A

Link port: USB2.0 high-speed interface

Working environment: clean and dust-free, no direct sunlight, well ventilated, optimal temperature 15-30°C

Package Size: L1170*W1190*H600mm

Printing type: glass, acrylic, ceramic tile, metal plate, cardboard, fabric, wood, leather, PVCPP, PE, PTFE, wine bottle, thermos and other flat cylindrical items
